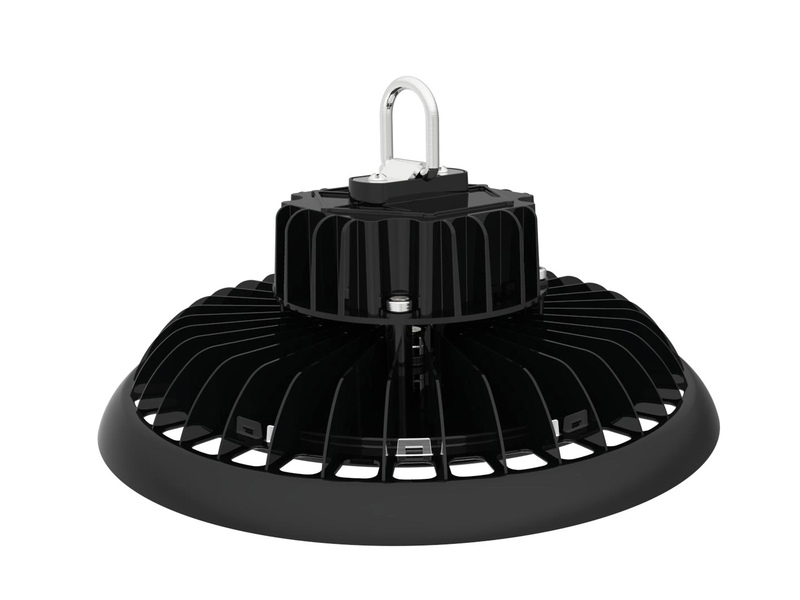

UFO08 High Efficiency 60W-200W LED High Bay Light

Product Features

1.High-Efficiency Performance: 170 lm/W efficacy delivers industry-leading energy savings while maintaining brilliant light levels. Choose standard Ra70 or premium Ra80 CRI for accurate color rendering in any task.

2.Smart Control & Dimming: Triple-protocol dimming (0-10 V, DALI, Zigbee) plus an integrated microwave motion sensor automatically tune brightness to occupancy and ambient light, keeping target lux levels constant. Six CCT presets (3000 K–5700 K) shift seamlessly from warm to daylight.

3.Industrial Durability: IP65-rated enclosure blocks dust and water; the driver and LEDs operate reliably from –40 °C to +50 °C, making the luminaire at home in cold-storage rooms and high-heat factories alike.

4.Flexible Configuration: Auto-sensing 100-277 V AC eliminates regional voltage concerns, while a choice of 60 °/90 °/120 ° beam angles and premium drivers (Mean Well, Moso, Sosen, Philips) lets you spec the exact optic and power package you need—install once, illuminate anywhere.

Basic Parameter Table

Parameter Category	Details
Product Model	UFO08 60W-200W (SA-UFOA00-60W to SA-UFOA00-200W)
Power Range	60W, 80W, 100W, 120W, 150W, 200W
Input Voltage	100-277VAC
Power Factor	＞0.95
Color Rendering Index	- Ra70 - Ra80
Luminous Efficacy	- 170lm/W (at Ra70) - 160lm/W (at Ra80)
Luminous Flux	- 60W: 10200lm (Ra70), 9600lm (Ra80) - 80W: 13600lm (Ra70), 12800lm (Ra80) - 100W: 17000lm (Ra70), 16000lm (Ra80) - 120W: 20400lm (Ra70), 19200lm (Ra80) - 150W: 25500lm (Ra70), 24000lm (Ra80) - 200W: 34000lm (Ra70), 32000lm (Ra80)
Color Temperature (CCT)	3000K (N), 3500K (M), 4000K (L), 4500K (K), 5000K (C), 5700K (H)
Dimming Method	0~10V Dimming, DALI, Zigbee
Sensors	Motion Sensor, Daylight Sensor, PIR Sensor
Beam Angle	60° (R060), 90° (R090), 120° (R120)
Material	Aluminum Alloy
Power Supply Brand	MW, Moso, Sosen, Philips
Installation Method	Ring Mount, Bracket Mount, Combined Ring and Bracket Mount
Certifications	CE, RoHS
Warranty Period	5 Years
Dimensions	- 60W/80W/100W: Φ240xH156mm - 120W/150W: Φ285xH161mm - 200W: Φ310xH163mm
Weight	- 60W: 2.1KG - 80W: 2.2KG - 100W: 2.3KG - 120W: 2.7KG - 150W: 2.8KG - 200W: 3.4KG
