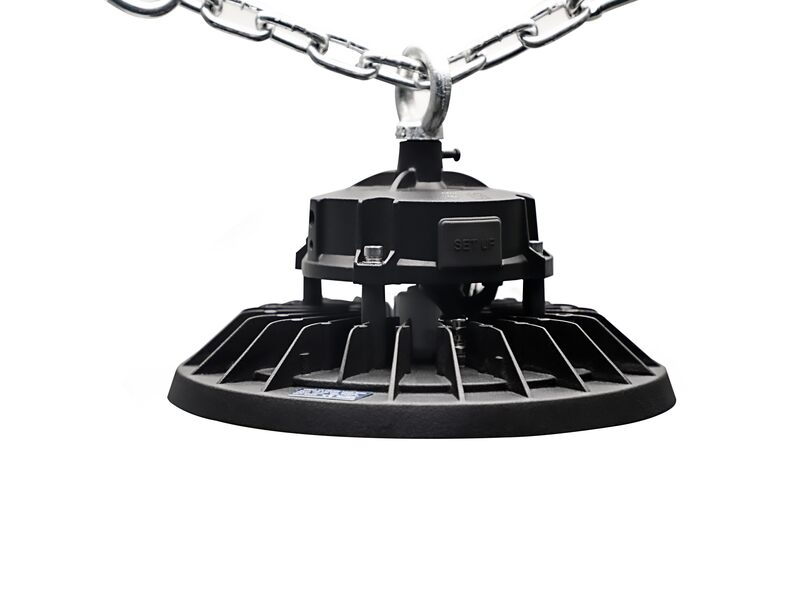

UFO09 Manufacturer 80W-200W LED High Bay Light

Product Features
1.High Efficiency & Energy Saving：170lm/W (Ra70) and 160lm/W (Ra80) efficacy with power factor ＞0.95, significantly reducing energy consumption.
2.Strong Adaptability：80W-200W power range, 3000K-5700K CCT options, 60°/90°/120° beam angles, fitting various scenarios.
3.Intelligent Dimming：Supports non-dimming/0~10V dimming, optional power & CCT adjustment and motion sensing, flexibly meeting needs.
4.Durable & Reliable：Aluminum housing + PC lens, IP65 protection, IK10 impact resistance, stable operation at -30℃~45℃, with 4kV/6kV surge protection.
5.Easy Installation：Supports ring and bracket mounting, 300mm cable length, adapting to different installation environments.
Certification: CE, RoHS, LM79, IK10, D-MARK, IP66, ISTMT, TM21

Basic Parameter Table

Parameter Category	Details
Product Model	UFO09 80W-200W (SA-UFOA00-80W to SA-UFOA00-200W)
Power Range	80W, 100W, 120W, 150W, 200W
Input Voltage	200-240VAC
Power Factor	＞0.95
Color Rendering Index	- Ra70 - Ra80
Luminous Efficacy	- 170lm/W (at Ra70） - 160lm/W (at Ra80)
Luminous Flux	- 80W: 13600lm (Ra70), 12800lm (Ra80) - 100W: 17000lm (Ra70), 16000lm (Ra80) - 120W: 20400lm (Ra70), 19200lm (Ra80) - 150W: 25500lm (Ra70), 24000lm (Ra80) - 200W: 34000lm (Ra70), 32000lm (Ra80)
Color Temperature (CCT)	3000K (N), 3500K (M), 4000K, 4500K (K), 5000K, 5700K (H)
Dimming Method	Non-Dimming, 0~10V Dimming
Beam Angle	60° (R060), 90° (R090), 120° (R120)
Material	Body: Aluminum; Lens: PC
Power Supply Brand	Stronglumen, Lifud, Fahold
Installation Method	Ring Mounted, Bracket Mounted
Certifications	CE, RoHS
Warranty Period	5 Years
Dimensions	- 80W/100W: Φ240xH155mm - 120W/150W: Φ285xH157mm - 200W: Φ325xH160mm
Packaging Dimensions	- 80W/100W: L290xW290xH160mm - 120W/150W: L335xW335xH165mm - 200W: L375xW375xH170mm
Weight	- 80W/100W: 2.0KG - 120W/150W: 2.6KG - 200W: 3.2KG
LED Type	SMD2835
Operating Temperature	-30°C~+45°C
Protection Rating	IP65
Impact Resistance Rating	IK10
Surge Protection	4kV line-line, 6kV line-earth
Cable Length	300mm
