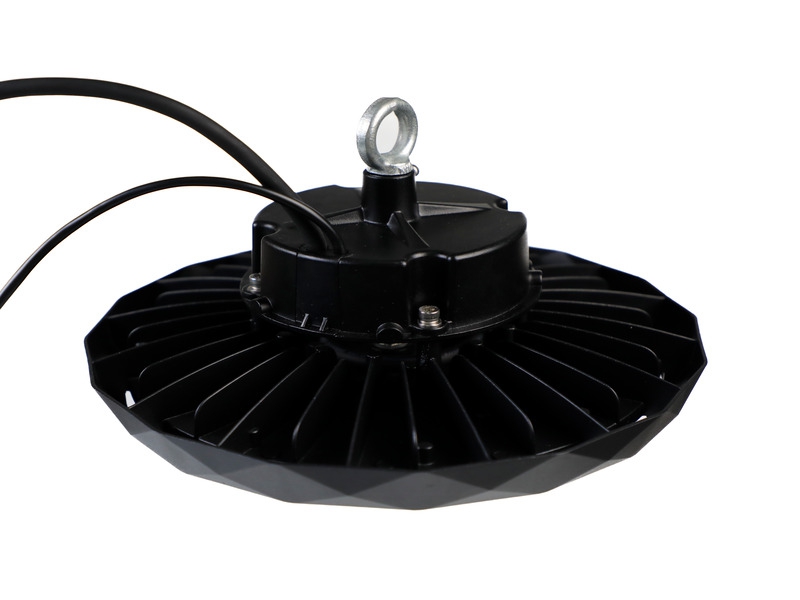

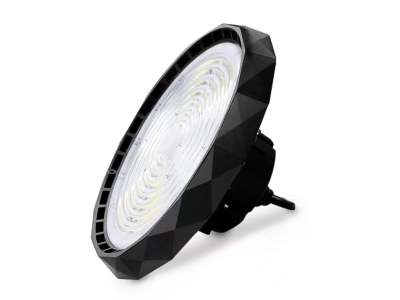

UFO10 Ultra- 220lm/W High Efficiency LED High Bay Light

Product Features
1. Unmatched 220 lm/W Efficiency: Delivering industry-leading efficacy with 17,600–52,800 lumens (80W–240W), this high bay light achieves 60%+ energy savings versus traditional lighting. Precise ±5% light distribution ensures uniform illumination across industrial spaces.
2. Industrial-Grade Resilience: Featuring an IP65-rated aluminum housing and PC lens for dust/water resistance, it operates reliably in -40°C to +40°C extremes—ideal for cold storage and high-heat factories. 6kV surge protection safeguards against power grid fluctuations.
3. Adaptive Optical Control: Choose from 3 beam angles (60° spot / 90° medium / 120° flood) and 6 CCT options (3000K–5700K). Smart-ready with 0-10V dimming and motion sensor compatibility for automated energy optimization.
4. Lightweight & Installer-Friendly: Compact design (Ø262–335mm × H153–166mm) with dual ring/bracket mounting. At 2.3–3.3kg/unit, it’s 30% lighter than competitors—reducing shipping costs and speeding deployment.
Certification: CE, RoHS, LM79, IK10, D-MARK, IP66, ISTMT, TM21

Basic Parameter Table

Parameter Category	Details
Product Model	UFO10 80W-240W (SA-UFOA00-80W to SA-UFOA00-240W)
Power Range	80W, 100W, 120W, 150W, 200W, 240W
Input Voltage	100-240VAC
Power Factor	＞0.95
Color Rendering Index	Ra70
Luminous Efficacy	220lm/W
Luminous Flux	- 80W: 17600lm - 100W: 22000lm - 120W: 26400lm - 150W: 33000lm - 200W: 44000lm - 240W: 52800lm
Color Temperature (CCT)	3000K (N), 3500K (M), 4000K (L), 4500K (K), 5000K (C), 5700K (H)
Dimming Method	Non-Dimming, 0~10V Dimming
Beam Angle	60° (R060), 90° (R090), 120° (R120)
Material	Housing: Aluminum; Lens: PC
Power Supply Brand	Lifud, Sosen, ZH power
Installation Method	Ring Mounted, Bracket Mounted
Certifications	CE, RoHS
Warranty Period	5 Years
Dimensions	- 80W/100W: Φ262xH153mm - 120W/150W: Φ307xH161mm - 200W/240W: Φ335xH166mm
Packaging Dimensions	- 80W/100W: L310xW310xH160mm - 120W/150W: L350xW350xH170mm - 200W/240W: L385xW385xH175mm
Weight	- 80W/100W: 2.3KG - 120W/150W: 2.8KG - 200W/240W: 3.3KG
LED Type	SMD2835
Operating Temperature	-40°C~40°C
Protection Rating	IP65
Impact Resistance Rating	IK10
Surge Protection	4kV line-line, 6kV line-earth
Cable Length	300mm

File Name :	Format:	Size:	Download:
UFO10 HIGHBAY LIGHT	PDF	3.13 MB
